Thermal imaging is cool. Want to impress your friends? Bring over a thermal imaging camera. Want your kid to ace the science fair? Include thermal imaging. Seeing heat even when you canโt visually see triggers an instinctual reaction in guys that says โI want thatโ. Owning a thermal imaging camera gives your man card an immediate jump up a level. Holding a thermal imaging camera for the first time will help you understand why personal thermal imaging is becoming really popular.

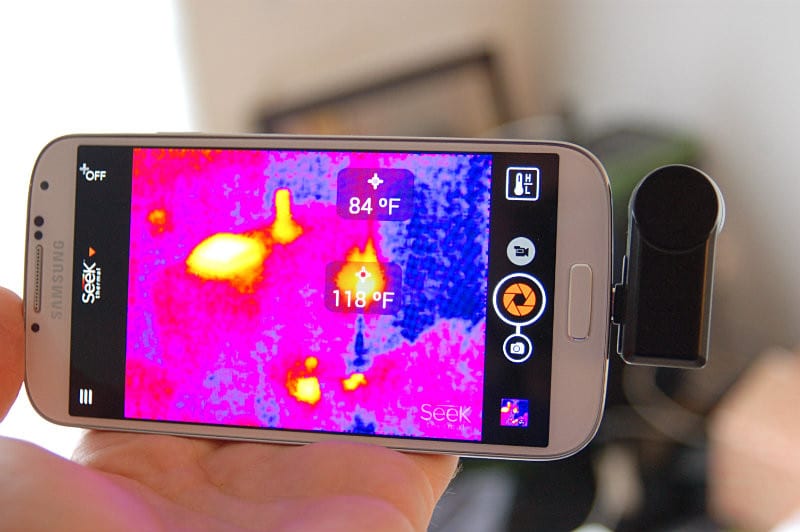

The FLIR One made a huge splash last year when it came out with the iPhone 5/5s based system. Sadly for all smart phone users that werenโt on the 5/5S platform, we were left wanting. Thatโs where the Seek Thermal camera comes into play. Rather than connecting to your phone like a cover, it simply attaches via your micro USB connection on many Android and Apple phones. The free app then takes care of the rest.
First Impression ofย the Seek Thermal Camera

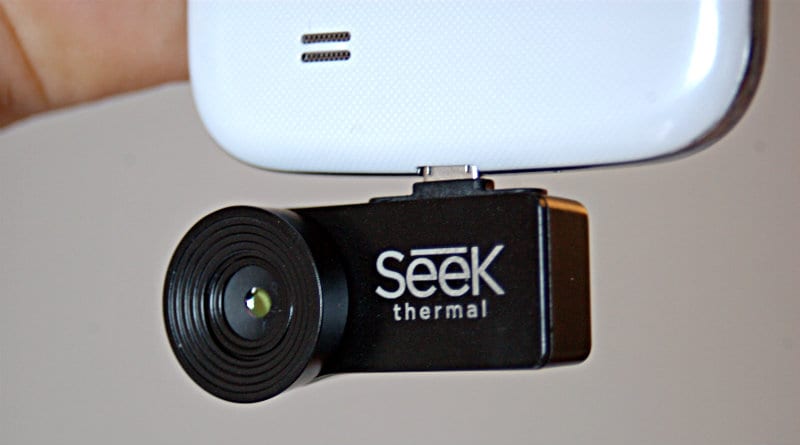

The Seek Thermal camera (and itโs extended range brother, the XR) are a little over an inch long and perhaps 3/4โณ at itโs widest point. This is a pretty small footprint considering youโre only going to have it attached when you need it. The housing is a plastic construction that would be a bit disconcerting on a full featured (and priced) thermal imaging camera. This concern is really offset by the fact that itโs attached to your cell phone. Any bump or drop that threatens the Seek Thermal is also a risk , and perhaps a greater one, to your phone.
ย
ย
Since the Seek Thermal camera connects to your micro USB port, there will be a couple of potential drawbacks. First, not all phone covers are going to allow for use while in place. Second, some phones have the port flipped. Youโll want to be able to install it so that it faces the same direction as your phoneโs camera.
Like the FLIR C2, youโll hear an audible clicking noise as the camera auto adjusts to the conditions it encounters. This is normal, even though non-thermal camera users are used to smooth and quiet lens focusing.ย The unit comes with a waterproof plastic case for storage thatโs pretty stout. It should easily protect the Seek Thermal camera from any damage while in your pocket.
Seek Thermal Camera in Use
Thermal Imaging

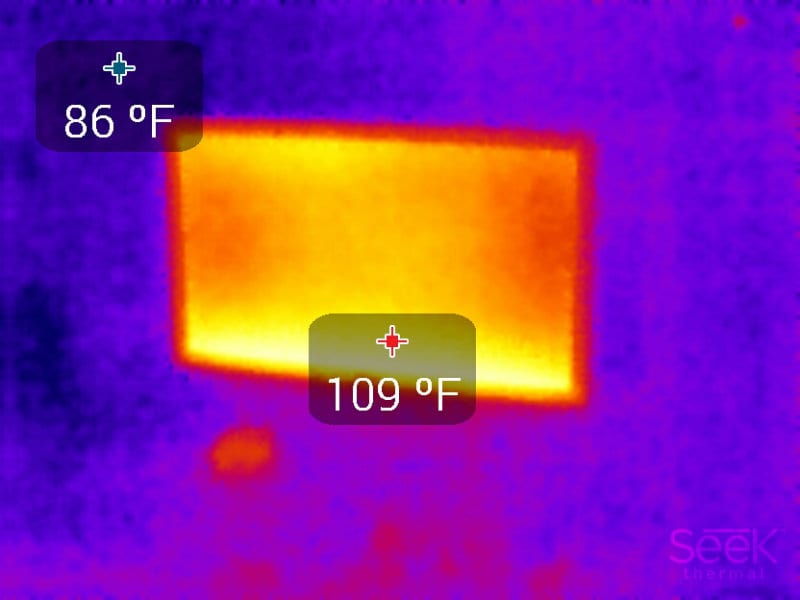

Something to keep in mind when you consider the image quality with the Seek Thermal: this is a $250 cell phone accessory, not a $700 entry level thermal camera or $5000 thermal system. There are some tradeoffs. It does a reasonable job for what itโs designed for. Unless thereโs a temperature difference of several degrees, itโs hard to see subtle changes around you. Sharp contrast, like this computer monitor, are much easier to recognize.

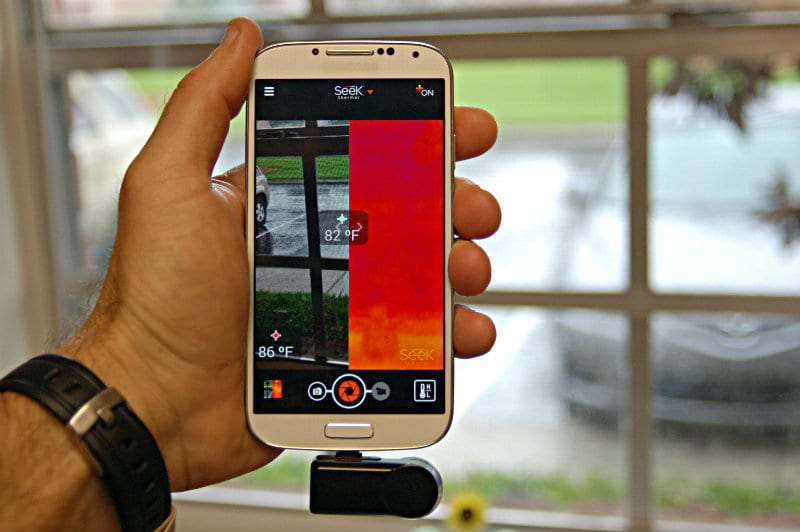

Since the thermal image isnโt always detailed enough to see whatโs going on, you can change to a split view. This allows you to swipe the image to thermal or visual (from your phone camera) or to split the screen how you like. Using this feature makes it more obvious that Iโm checking the efficiency of this window installation.
You have a choice of 9 different color palettes. I prefer to work in the classic iron or gray scale modes. In the home that I was looking for energy leaks in, I didnโt find that one palette offered a significantly better contrast than any other. There arenโt a lot of settings to change or get confused by with this system. Itโs about as plug and play as you can hope to find.
Temperature Readings
The Seek Thermal camera has several temperature options. Most of the time, I used it in High/Low mode. This allows the camera to pinpoint the highest and lowest temperatures in the frame at any given time. If you want to highlight a specific point, you can use a single center point reading. The temperature can also be turned off and be changed between Fahrenheit and Celsius.

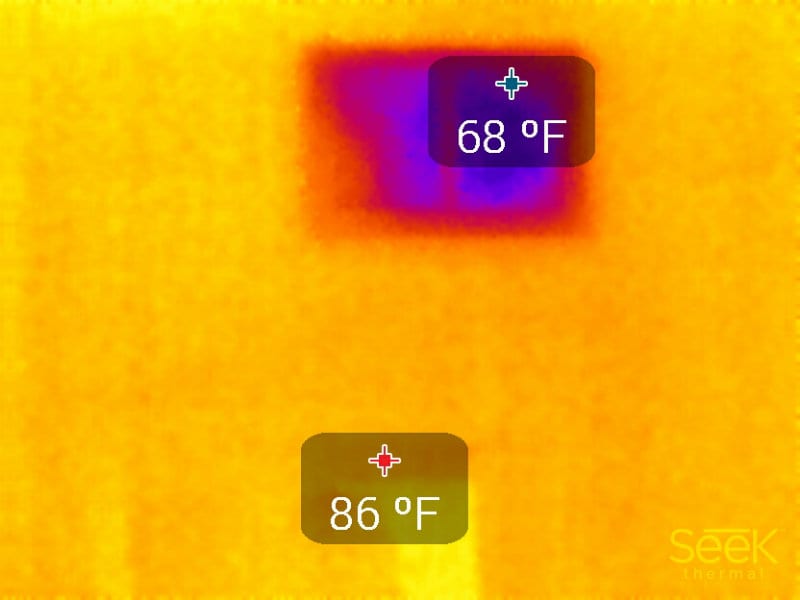

When compared to an IR thermometer, the Seek Thermal consistently ran several degrees higher. I checked a running AC vent for efficiency and had a difference of 5 โ 6 degrees. Other temperature checks werenโt that severe, but it did tend to average 2 โ 3 degrees warmer.
Conclusions
If youโre looking for an inexpensive entry into thermal imaging for your business as a pro, youโll want something that offers a little more accuracy than the Seek Thermal camera. If youโre looking for an accessory thatโs got some really fun applications, will get you a lot of โLikesโ and comments on Facebook, and can do some basic diagnosis, then the Seek Thermal will beย helpful to you.
As you take yourself out of the professional or prosumer tool world and enter where most mortals live, Seek Thermalโs possibilities expand. Outdoorsmen will love the ability to see high contrast objects, like animals, after the sun goes down. DIYers can detect energy leaks, water leaks, and electrical shorts. Enterprising young people can have a huge advantage in hide and seek. Iโm sure youโll find other uses as well. To see and be inspired by other users, you can check out the user gallery on Seek Thermalโs website.
